two-shaft shredder

INFINITY 750

Request!
Data sheet

The EuRec INFINITY 750 impresses with its proven two-shaft technology and delivers a homogeneous, high-quality output material, especially when processing natural and waste wood – ideal for the requirements of demanding recycling companies. With practical details such as the shaft exchange cassette for time-saving maintenance access and the Volvo Penta diesel drive, the INFINITY 750 impresses with its efficiency and reliability in daily use.

Depending on the application, the shredder is supplied ex works with the appropriate shaft configuration – in synchronous or asynchronous operation.

Dimensions
Length12,000 mm /
6,900 mm (transport)
Width2,500 mm /
2,500 mm (transport)
Height2,600 mm /
2,600 mm (transport)
Weightapprox. 16,500 kg
Discharge height4,600 mm
Drive
Engine type

Volvo Penta TAD 883 VE

TAD 853 VE*

Power235 kW / 320 PS
Emission standard

Stage V / EPA Tier IV

Stage III A*

Torque

1,330 Nm

1,310 Nm*

Fuel capacity380 l
Shredding Unit
Hopper volume

5.0 m³

(incl. tilting hopper)

Shaft length1,750 mm
Shaft diameter680 mm
Weightapprox. 3,000 kg / cassette
Rotation speed15 – 38 rpm

*Rest of the world (country-specific requirements)

INFINITY 750

Applications

Green Waste

... branches, shrub and hedge cuttings, leaves, garden and park waste

Waste Wood

... pallets, chipboard, furniture remnants, construction timber, formwork

Trunk Wood

.. felled tree trunks, rootstocks, crown wood

Paper and Cardboard

... packaging boxes, paper rolls, newspapers, files and archives

Commercial Waste

... mixed waste from industry and trade, bulky waste, packaging waste, plastics

Watch the
INFINITY 750
in action!

INFINITY 750

Technical Features

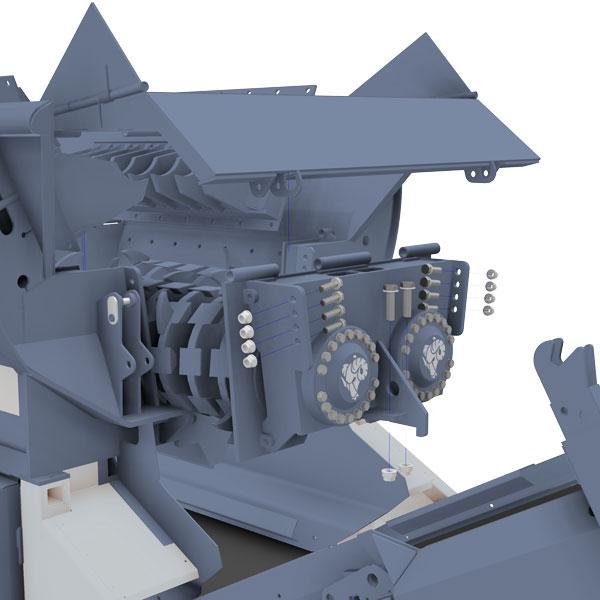

Exchangeable cassette
for shredding shafts

The quick-change system enables the complete pair of shafts to be replaced – in both synchronised and asynchronous configurations. Shorter maintenance and servicing times ensure that the machine is quickly ready for use again.

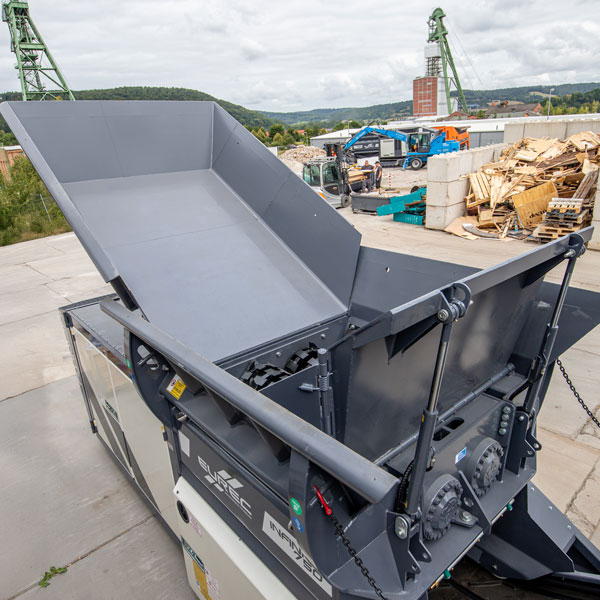

Two adjustable
tilting hoppers

Equipped as standard with a large tilting hopper for optimum material feed and a smaller tilting hopper for pushing the waste material into the shredding unit. This keeps material flow constant and maximises the machine's performance.

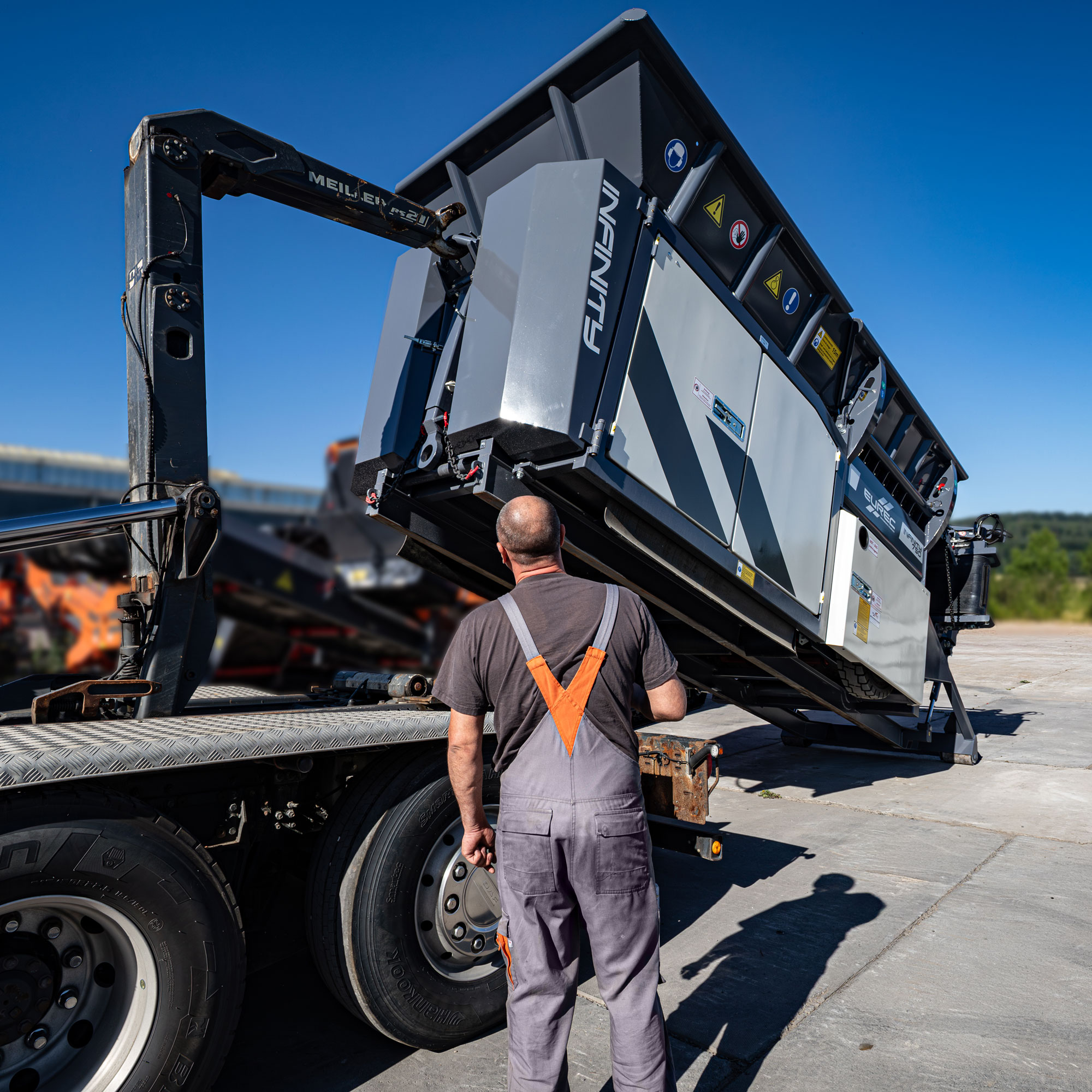

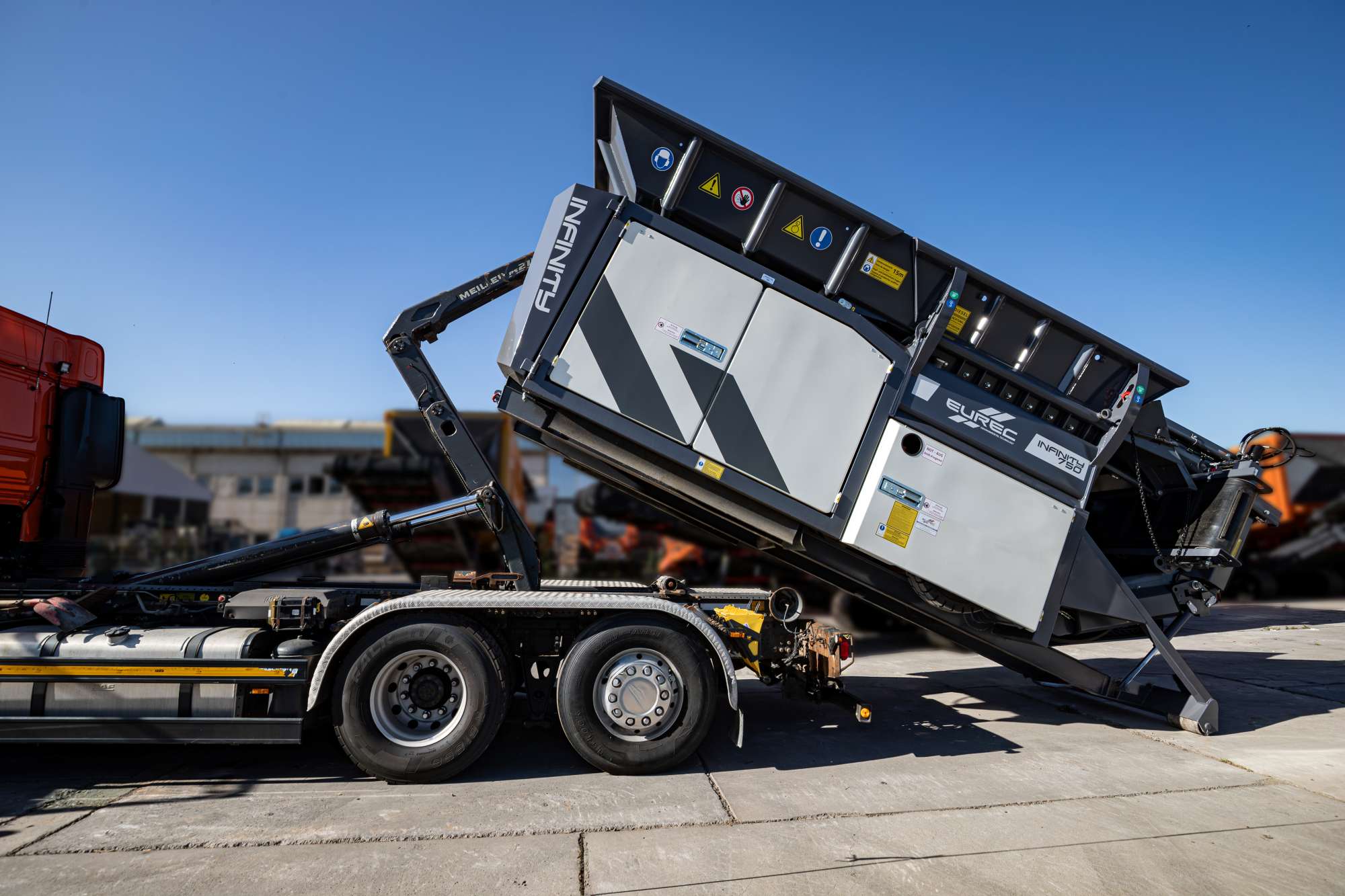

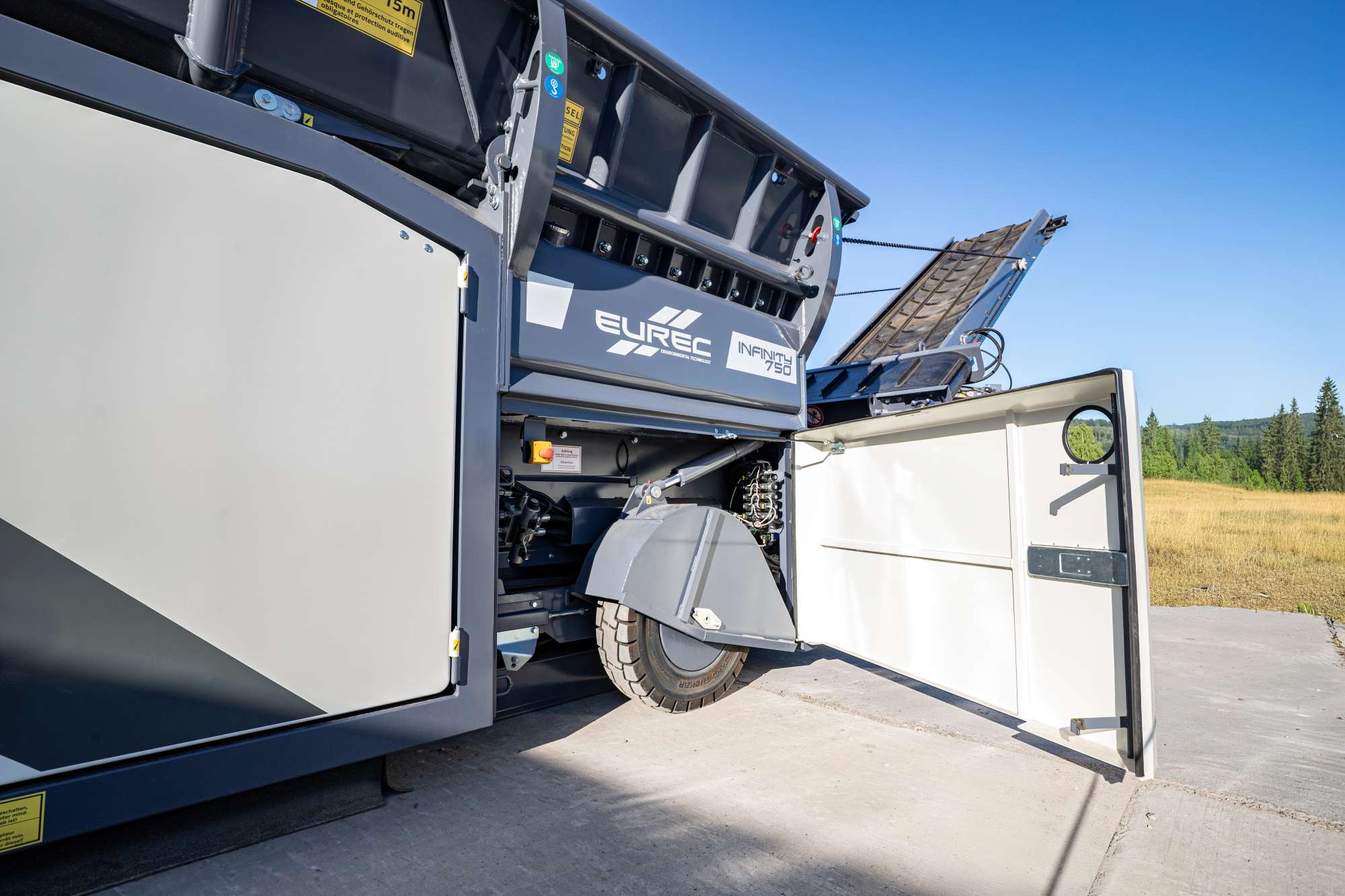

Hook lift mount
and drawbar

For inter-regional transport, the hook lift mount enables the machine to be loaded onto the lorry quickly and safely. At the place of use, the integrated drawbar and wheel axle ensure easy relocation using a wheel loader or forklift truck.

Interested in the EuRec INFINITY 750?

Contact us – our team will be glad to advise you on all questions relating to performance, equipment and possible applications.
