Two-Shaft Shredder

ULTIMA 850

Request!
Data Sheet

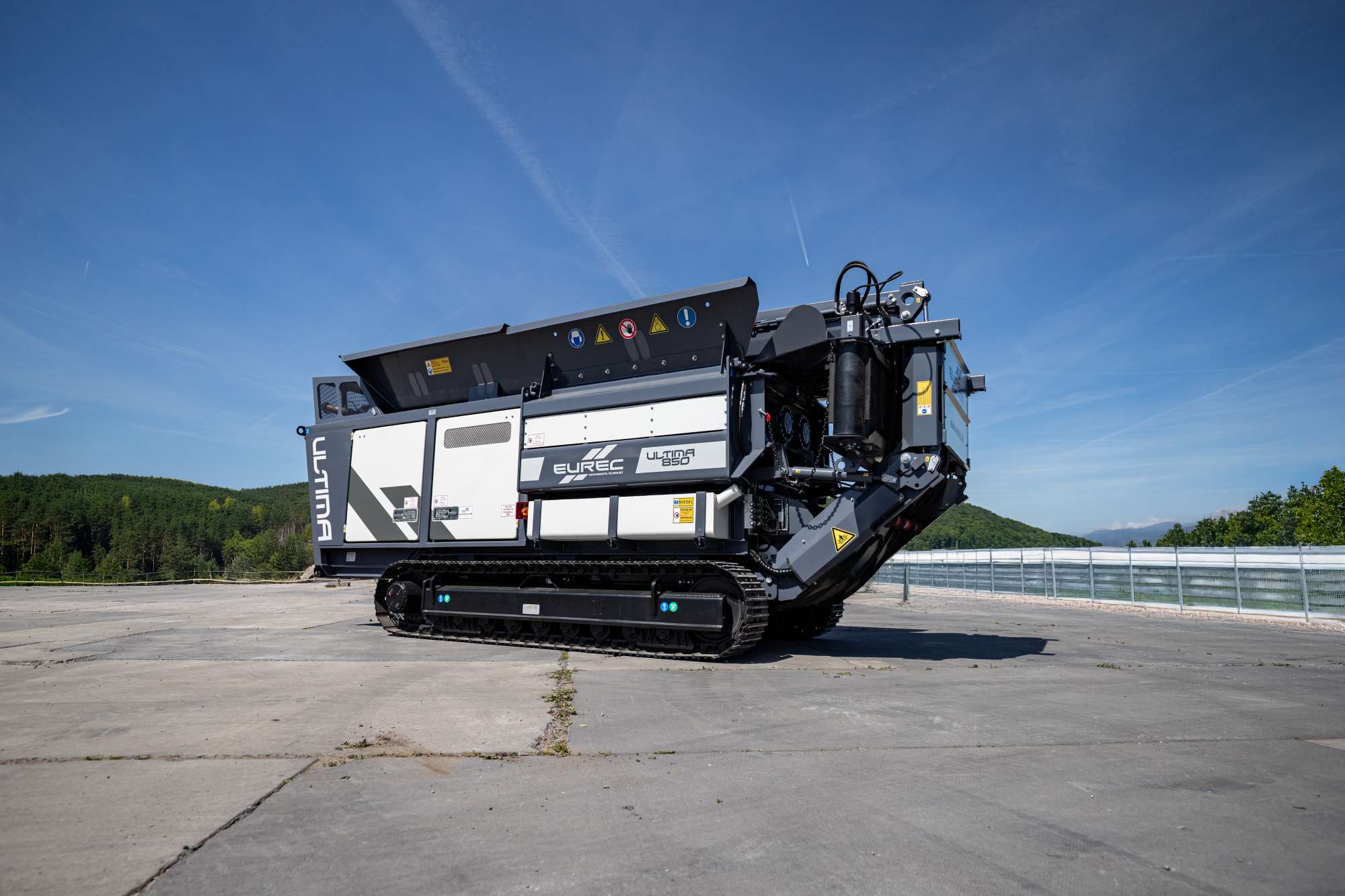

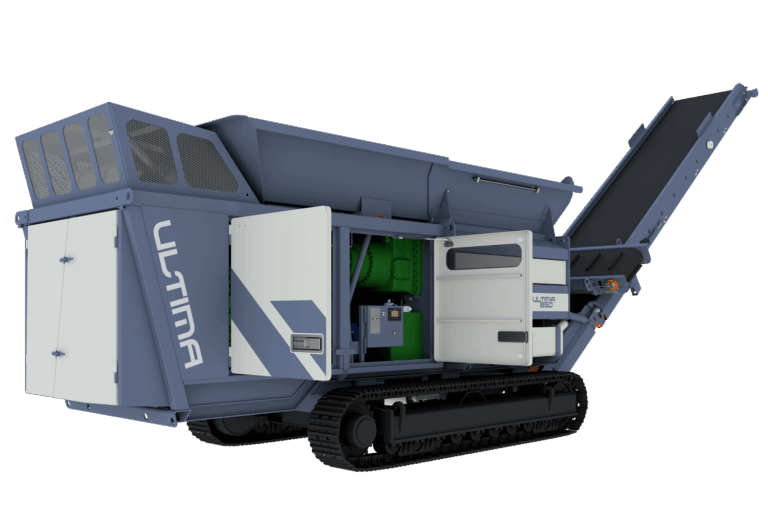

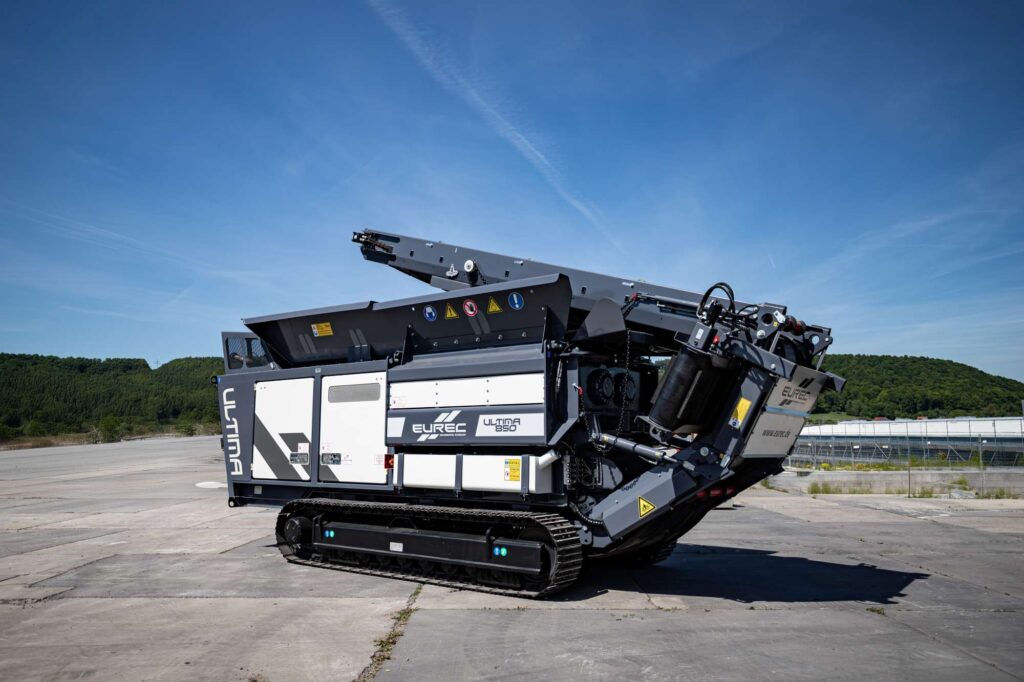

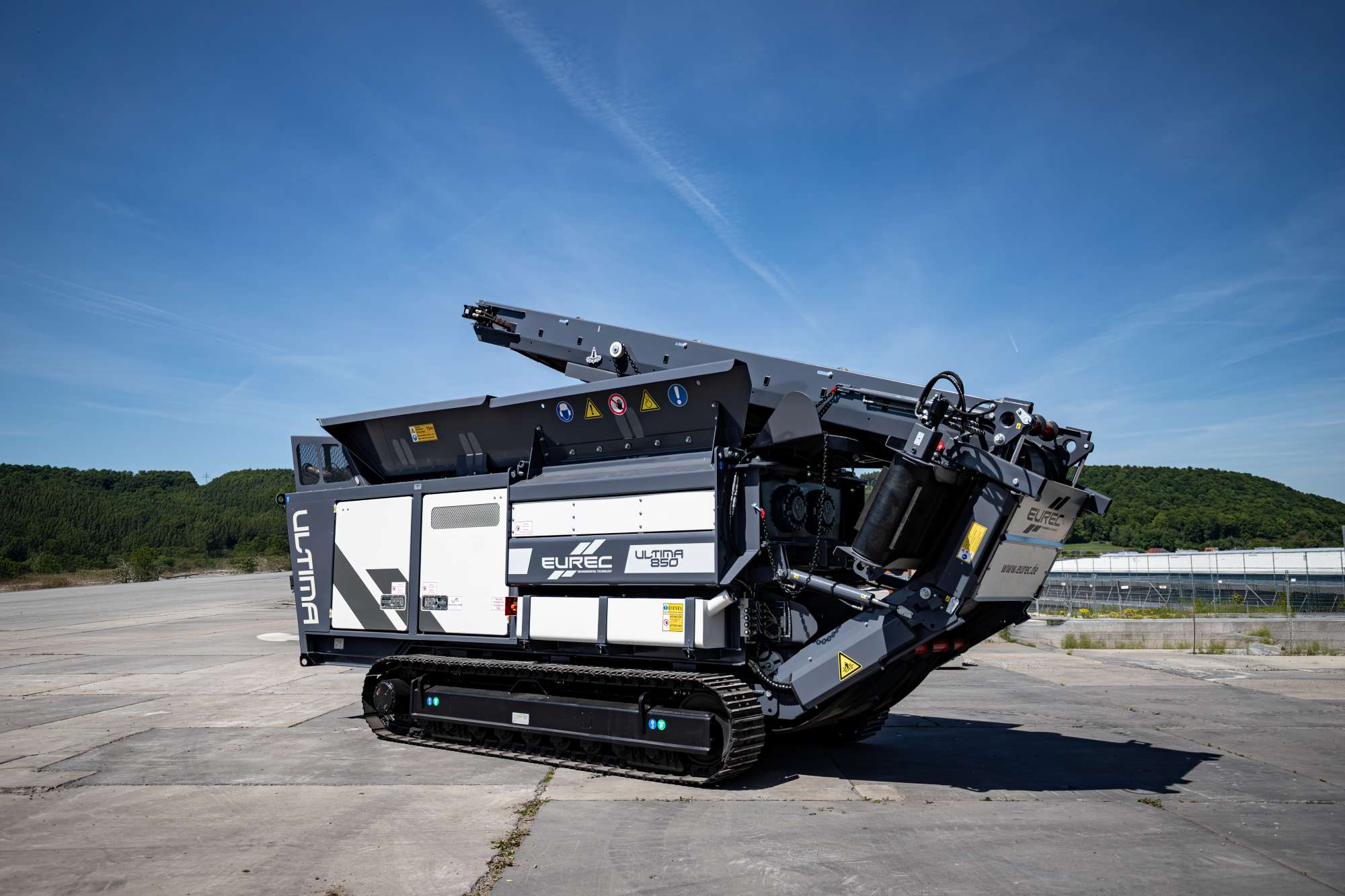

The EuRec ULTIMA 850 is a mobile two-shaft shredder for demanding applications in the field of commercial waste, waste wood and waste tires. With its robust design and reliable shredding technology, it is ideal for flexible use on changing construction sites or in recycling plants with a wide range of material flows.

The machine is customised at the factory with the appropriate shaft configuration – synchronous or asynchronous – for the intended application in order to achieve the best possible results in daily operation.

Dimensions
Length 12,600 mm / 7,500 mm (transport)
Width 2,500 mm / 2,500 mm (transport)
Height 3,000 mm / 3,000 mm (transport)
Weight approx. 23,500 kg
Discharge height max. 5,400 mm

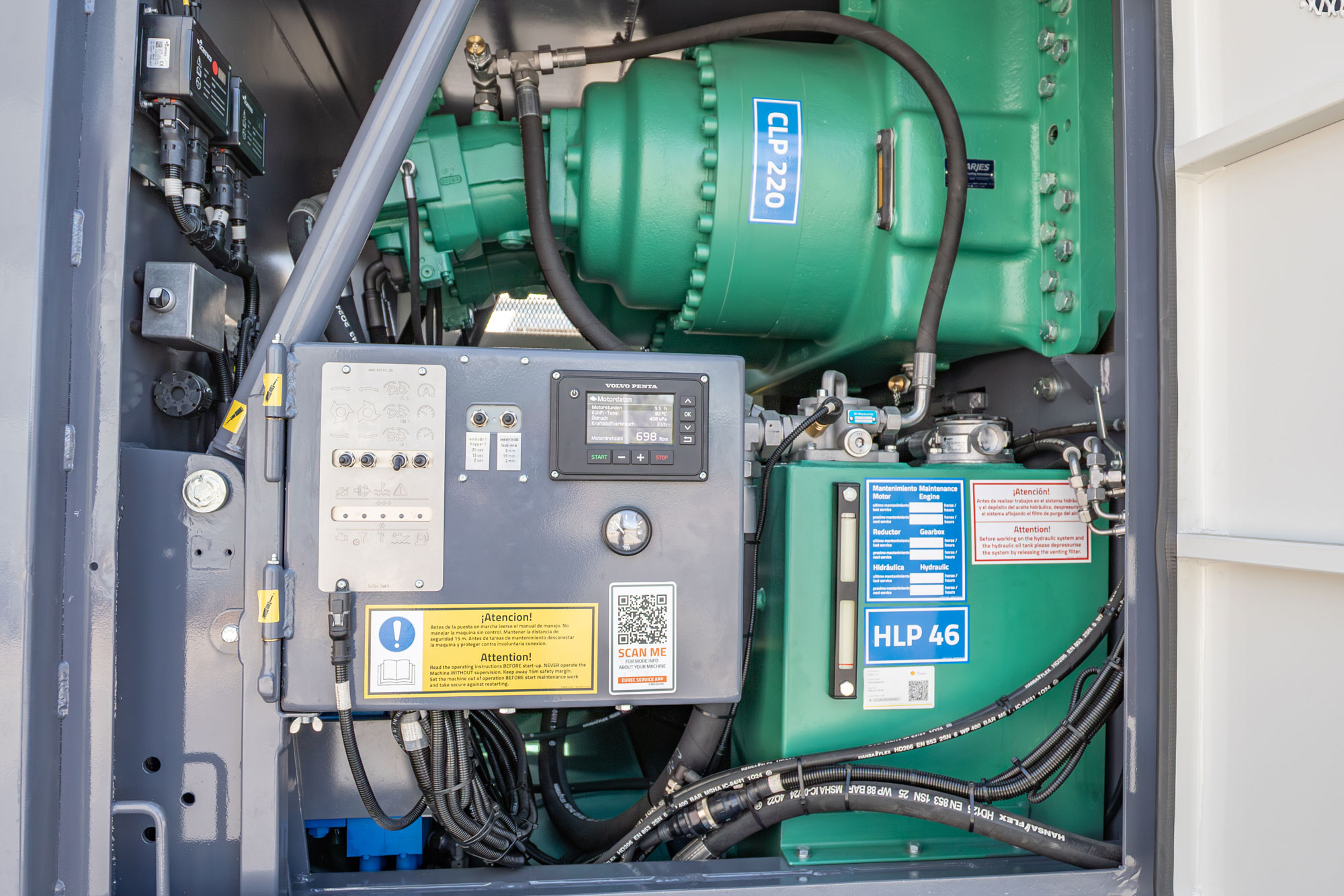

Drive
Engine type Volvo Penta TAD 1183 VE TAD 1152 VE*
Power 315 kW / 430 PS 285 kW*
Emission standard Stage V / EPA Tier IV Stage III A*
Torque 1,950 Nm 1,940 Nm*
Fuel capacity 600 l

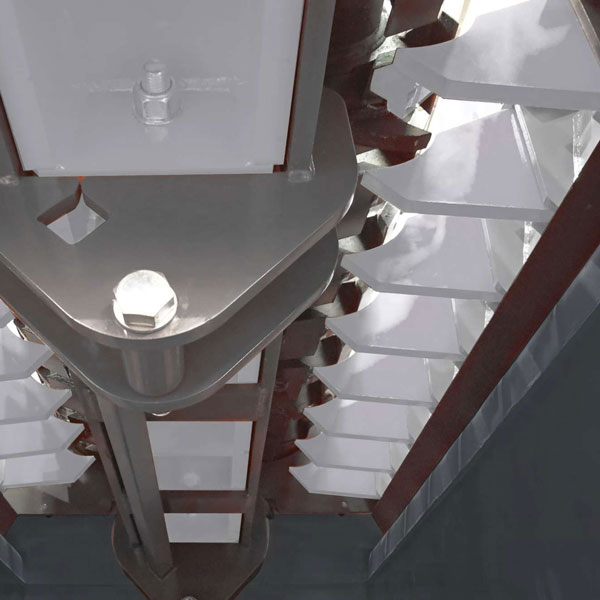

Shredding Unit
Hopper volume 6.0 m³ (incl. tilting hopper)
Shaft length 2,000 mm
Shaft diameter 680 mm
Weight approx. 3.700 kg / cassette
Rotation speed 15 – 45 rpm
*Rest of the world (country-specific requirements)
ULTIMA 850

Applications

Commercial Waste

.. mixed waste from industry and trade, bulky waste, packaging waste, plastics

Rubber and Waste Tires

... car and truck tires, tractor tires, conveyor belts, rubber mats

Green Waste

... branches, shrub and hedge cuttings, leaves, garden and park waste

Waste Wood

... pallets, chipboard, furniture remnants, construction timber, formwork

Trunk Wood and Roots

... felled tree trunks, rootstocks, crown wood

Paper and Cardboard

... packaging boxes, paper rolls, newspapers, files and archives

Watch the
ULTIMA 850
in action!

ULTIMA 850

Technical Features

Hydraulically damped
side combs

If the pressure on the shredding shafts is too high, the combs are automatically opened to effectively reduce unwanted blockages and pressure loads on the shredder.

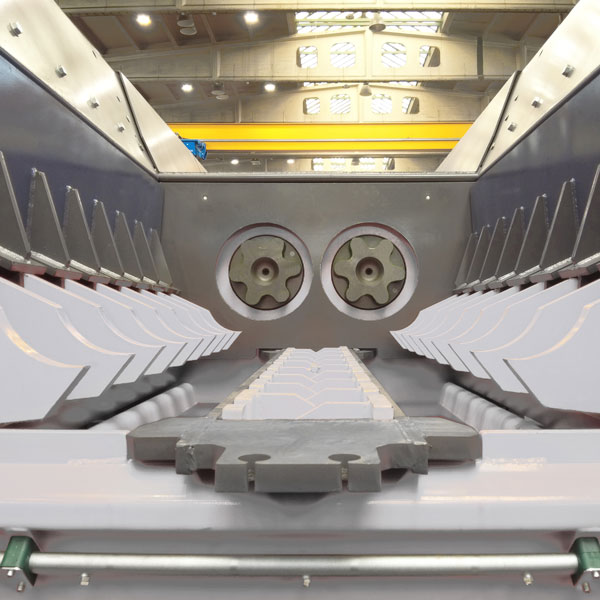

Lowerable
breaker bar

Thanks to the hydraulically lowerable breaker bar and the two movable side combs, worn shredding shafts can be replaced quickly and easily – only included with synchronised shaft configuration!

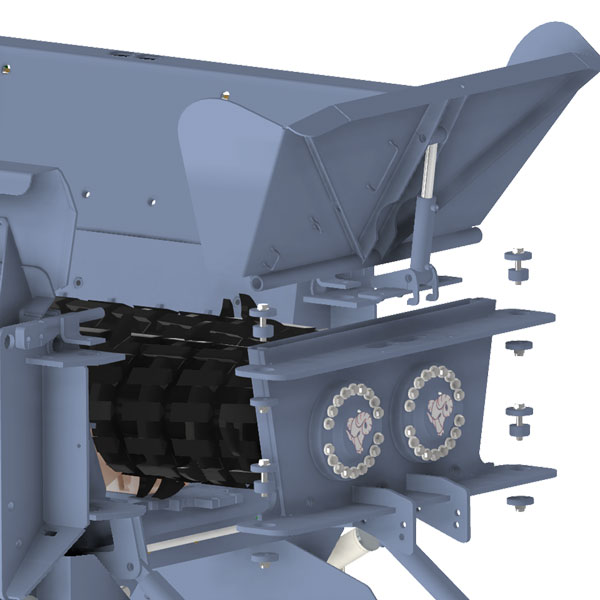

Exchangeable cassette
for shredding shafts

The quick-change system enables the complete pair of shafts to be replaced – in both synchronised and asynchronous configurations. Shorter maintenance and servicing times ensure that the machine is quickly ready for use again.

Interested in the EuRec ULTIMA 850?

Contact us – our team will be glad to advise you on all questions relating to performance, equipment and possible applications.
